Description

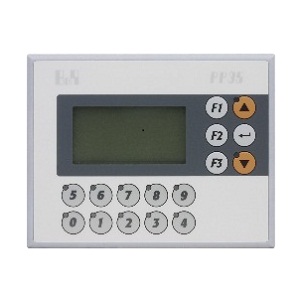

B&R Power Panel 4PP035.0300-01

• Extended Product Type : HMI/Touch Screen

• Product ID : 4PP035.0300-01

• B&R Type Designation :  HMI/Touch Screen

Description

• Power Panel, 24 VDC, 153×120 mm, LCD, 160 x 80 pixels, 3 inches, backlight, 16 keys, 300 kB SRAM, 1024 kB FlashPROM, 1 RS232, 1 CAN interface, network-capable, 16 digital inputs, 24 VDC, sink/source, 2 event counters or 1 incremental encoder or 2x period/gate measurement, 16 digital outputs, 24 VDC, 0.5 A source, IP65 protection (from front), order 2x TB718, 1x TB103 terminal blocks separately.

Specification

• Display Type : Monochrome LCD
• Resolution : 160 x 80 pixels
• Nominal voltage : 24 VDC
• Nominal output current : 0.5 A
• Function keys : 10 with LED (yellow)
• Power consumption : Max. 6 W
• Weight : 0.5 kg
