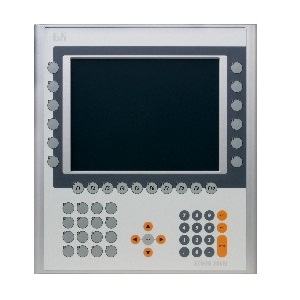

B&R Power Panel 4PP451.1043-75

Description

B&R Power Panel 4PP451.1043-75

• Extended Product Type : HMI/Touch Screen

• Product ID : 4PP451.1043-75

• B&R Type Designation :  HMI/Touch Screen

Description

• Power Panel PP481; 10.4″ VGA color TFT display 10 softkeys; 28 function keys and 20 system keys; 1 aPCI slot; 128 MB SDRAM; 512 KB SRAM; CompactFlash slot (type I); ETH 10/100; RS232; 2x USB; IP65 protection (front side); 24 VDC (0TB103.9 screw clamp or 0TB103.91 cage clamp must be ordered separately).

Specification

• Display Type : Color TFT
• Resolution : VGA, 640 x 480 pixels
• Nominal voltage : 18 to 30 VDC
• Nominal current : 0.63 A
• Function keys : 28 with LED (yellow)
• Power consumption : Typ. 15 W
• Weight : 5000 g
