Description

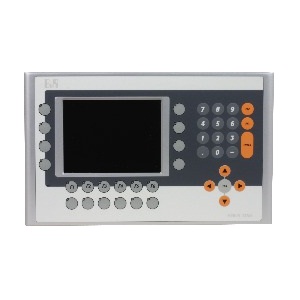

B&R Power Panel 4PP452.0571-75

• Extended Product Type : HMI/Touch Screen

• Product ID : 4PP452.0571-75

• B&R Type Designation :  HMI/Touch Screen

Description

• Power Panel PP452; 5.7″ QVGA TFT color display; 20 function keys and 20 system keys; 1 aPCI slot; 128 MB SDRAM; 512 KB SRAM; CompactFlash slot (type I); ETH 10/100; RS232; 2x USB; IP65 protection (front side); 24 VDC (0TB103.9 screw clamp or 0TB103.91 cage clamp must be ordered separately).

Specification

• Display Type : Color TFT
• Resolution : QVGA, 320 x 240 pixels
• Function keys : 20 with LED (yellow)
• Nominal voltage : 18 to 30 VDC
• Nominal current : 0.63 A
• Power consumption : Typ. 15 W
• Weight : 2600 g
