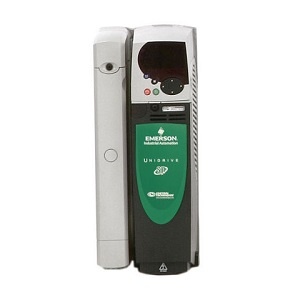

Control Techniques SP2203 VFD Unidrive SP AC Drive 7.5kW 10HP 28A

• Extended Product Type: AC Drives
• Product ID: SP2203
• Control Techniques Type Designation: AC Drive

Description of Control Techniques SP2203 AC Drive 7.5kW 28A

Control Techniques SP2203 Variable Speed/Frequency Drive (VSD/VFD) – single Safe Torque Off (STO) – SIL3/PLe – wall-mounted – NIDEC / Control Techniques (Unidrive SP) – Rated output 7.5kW / 10HP – Rated current 28A – Supply voltage 200Vac-240Vac (220Vac / 230Vac) (3-phase input (3P)) – with Modbus RTU / RS-485 communication capability – frame size 2 – frequency (output) 0-550 – IP20 / NEMA 1 – rated for 0°C…+40°C ambient – equivalent to SP2203

Specification of Control Techniques SP2203 VFD Unidrive SP AC Drive 7.5kW 28A

• Primary brand: NIDEC
• Secondary brand: Control Techniques
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family name: Unidrive SP
• Network frequency: (Supply input) 48-65 Hz, (output) 0-550 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD)
• Design: single Safe Torque Off (STO), air cooling
• Supply voltage (AC): 200Vac-240Vac (220Vac / 230Vac)
• Type of network: 3-phase input (3P)
• Rated current: 28A (Normal duty), 25A (Heavy-duty)
• Rated active power (kW): 7.5kW (Normal duty), 5.5kW (Heavy-duty)
• Rated power (HP): 10HP (Normal duty), 7.5HP / 7-1/2HP (Heavy-duty)
• Communication protocol: Modbus RTU, RS-485
• Mounting mode: wall-mounted
• Digital inputs: 3 x digital inputs (0-24Vdc), 3 x digital inputs (0-24Vdc)
• Digital outputs: 3 x digital outputs (0-24Vdc; source)
  • 1 x digital output (2A / 240Vac; source; rly. contact type)
• Analog inputs: 1 x analog input (-9.8Vdc…9.8Vdc; differential (for single-ended; connect term.6 to term.3); 16-bit)
  • 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc…9.8Vdc; single-ended; 10-bit conversion resolution)
• Analog outputs: 2 x analog outputs (0-20mA / 4-20mA / -10Vdc…10Vdc; single-ended; source; 10-bit conversion resolution)
• Degree of protection: IP20, NEMA 1
• Dimensions: frame size 2
• Ambient air temperature for operation: 0°C…+40 °C
• Application type: Extruder, Elevator control, Conveyor, Wire drawing, Pump, Bridle control
• Manufacturer product status: Commercialized
• Equivalent to: SP2203
• Compliant with standard(s): CE, C Tick, UL, cUL, ClassSIL3/PLe
  Benefits:
• Higher HP systems available through paralleling Secure disable for contactor elimination to EN954-1 cat 3
  Smart Card – parameter and application program cloning and back up card
• Universal feedback interface supports up to 14 types of encoders.
• High resolution analog input (16-bit plus sign), RS485 interface for PC connection, Dual duty ratings (normal and heavy).
• Three zero-space universal option slots
