Description

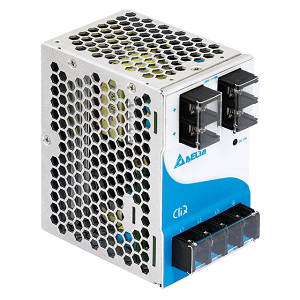

Delta Power Supply DRP024V120W3AA

• Extended Product Type : Power Supply

• Product ID : DRP024V120W3AA

• Delta Type Designation : Power Supply

Features

• Reliable design, with expected life of 10 years
• Compact, rugged design for ease of handling and installation
• Multiple connections to terminals allowed
• Designed for Class I Div.2 Hazardous Locations environments
• Meets worldwide safety requirements
• RoHS Directive 2011/65/EU Compliant
• Worldwide AC input range without power de-rating
• Overvoltage / Overcurrent / Over Temperature Protections
• 150% Power Boost (steady state peak load) for 3 seconds

Specification of Delta DRP024V120W3AA

• Nominal Output Voltage : 24V
• Output Current : 5A
• Output Power : 120W
• Nominal Input Voltage : 3 x 400-500Vac
• Input Current : < 0.50A @ 3 x 400Vac & 3 x 500Vac
• Dimensions(L x W x D) : 121 x 70 x 118.4 mm
• Weight : 0.72 kg
