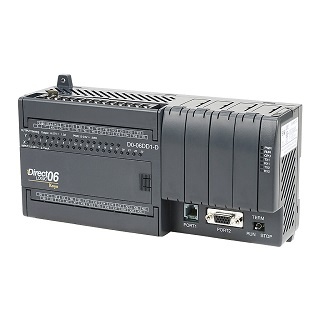

DirectLOGIC D0-06DD1-D PLC Discrete Input Output Module D006DD1D

Description

DirectLOGIC D0-06DD1-D PLC Discrete Input Output Module D006DD1D

DirectLOGIC DL06 PLC, 12-24 VDC required, serial ports, Discrete Input: 20-point, DC, Discrete Output: 16-point, sinking. The DL05 and DL06 micro PLCs are complete self-contained systems. The CPU, power supply, and I/O are all included inside the same housing. Option modules are available to expand the capability of each PLC family for more demanding applications. The standard features of these PLCs are extraordinary and compare favorably with larger and more expensive PLCs. The specification tables to the right are meant for quick reference only. Detailed specifications and wiring information for each model of the DL05 and DL06 PLCs can be found in those specific sections.

Program capacity of DirectLOGIC D0-06DD1-D PLC  Module

Most boolean ladder instructions require a single word of program memory. Other instructions, such as timers, counters, etc., require two or more words. Data is stored in V-memory in 16-bit registers.

Performance of DirectLOGIC D0-06DD1-D Input Output Module

The performance characteristics shown in the tables represent the amount of time required to read the inputs, solve the Relay Ladder Logic program and update the outputs.

Instructions of DirectLOGIC D0-06DD1-D PLC Module

A complete list of instructions is available at the end of this section.

Communications of DirectLOGIC D0-06DD1-D Input Output Module

The DL05 and DL06 offer powerful communication features normally found only on more expensive PLCs.

Special features of DirectLOGIC D0-06DD1-D PLC Module

The DC input and DC output PLCs offer high-speed counting or pulse output. Option module slots allow for discrete I/O expansion, analog I/O, or additional communication options.
