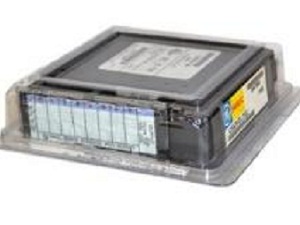

GE Positive/Negative Logic Output Module IC693MDL734

Description

GE Positive/Negative Logic Output Module IC693MDL734

• Extended Product Type : Positive/Negative Logic

• Product ID: IC693MDL734

• GE Type Designation : Positive/Negative Logic

Description

The 125 volt DC Positive/Negative Logic 1 Amp Output module for the Series 90-30
Programmable Logic Controller provides 6 isolated output points . Each output has a separate
common output terminal associated with it. This output module is designed to have either
positive logic characteristics in that it sources current to the loads from the user common or
positive power bus; or negative logic characteristics in that it sinks current from the loads to the
user common or negative power bus. The output characteristics are compatible with a wide
range of user-supplied load devices, such as: motor starters, solenoids, and indicators. Power to
operate the field devices must be supplied by the user.
LED indicators which provide the ON/OFF status of each point are located at the top of the
module. This LED block has two horizontal rows with eight green LEDs in each row. This
module uses the first six LEDs in the top row, labeled A1 through 6 (points 1 through 6) for
output status. An insert goes between the inside and outside surface of the hinged door. The
surface towards the inside of the module (when the hinged door is closed) has circuit wiring
information, and circuit identification information can be recorded on the outside surface. The
outside left edge of the insert is color-coded red to indicate a high-voltage module. External
fusing is recommended. Two amp loads can be driven by wiring and driving two outputs in
parallel.
This module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC
system.

Specification

• Rated Voltage : 125 volts DC
• Output Voltage Range  : +10.8 to +150 volts DC
• Isolation : 1500 volts between field side and logic side 500 volts between outputs
• Output Current:1 amp maximum per point
• Inrush Current : 15.89 amps for 10 ms
• Power Consumption : 90 mA (all outputs on) from 5 volt bus on backplane
