Description

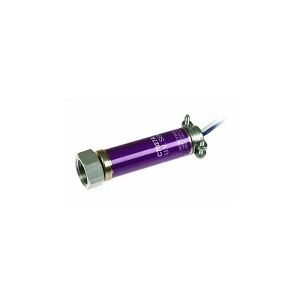

Honeywell Flame Sensor C7027A1072

• Extended Product Type : Other

• Product ID : C7027A1072

• Honeywell Type Designation : Other

Features

• Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
• C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
• Detectors can be wired in parallel for difficult sighting applications.
• C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
• Allows for blast tube mounting due to compact size.
• C7044 mounts with a two screw bracket.
• The C7044 UV sensor tube is enclosed in a stainless steel housing.
• C7044 has the capability of side or end viewing in flame monitoring applications.

Specification of Honeywell C7027A1072

• Application : Coal fired burners; Gas fired burners; Oil fired burners
• Used With : Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
• Mounting : Integral nut for 1/2 in. sighting pipe.
• Vibration : 0.5 G max
