Description

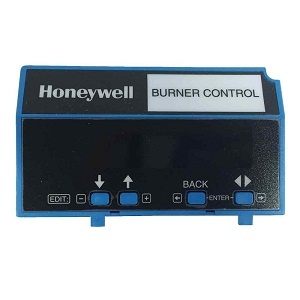

Honeywell Keyboard Display Module S7800A1142

• Extended Product Type : Other

• Product ID : S7800A1142

• Honeywell Type Designation : Other

Features

• Application flexibility.
• First-out annunciation and system diagnostics provided by 2 row by 20 column Vacuum Fluorescent Display (VFD).
• “Call Service” (Business Card) programmable message displayed when system lockout occurs.
• Local or remote annunciation of operation and fault information.
• First out expanded annunciation with 24 limit and interlock LEDs enhances keyboard display module information. Display can be Programmed to customize the expanded annunciator messages to the system.
• Required to program Valve Proving and Post Purge feature on selected 7800 Series devices.
• Can be setup for ModBus Communication.
• Provides burner controller data.
• Remote reset.

Specification of Honeywell S7800A1142

• Application : Keyboard Display for VP setup
• Voltage : 13 Vdc peak fullwave rectified (+20/-15%).
• Vibration : 0.5 G environment
• Weight (kg) : 0.11 kg
