Description

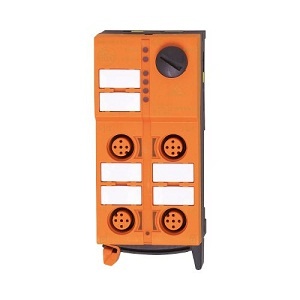

IFM AS-Interface I/O Module AC5214

• Extended Product Type : Other

• Product ID : AC5214

• IFM Type Designation : Other

Features

• Easy toolless installation and wiring thanks to quick mounting technology
• Three freely selectable directions of the flat cable
• Clearly visible powerful LEDs for displaying operation, status and function
• High protection rating for the requirements of harsh industrial environments
• Robust M12 connectors for connecting sensors and actuators

Specification of IFM AC5214

• Operating voltage [V] : 26.5…31.6 DC; (“supply class 2” to cULus)
• Max. current consumption from AS-i [mA] : 150
• Max. current load total [A]  : 2
• Number of digital inputs : 2
• Number of digital Output : 2
• Voltage supply [V] : 18…30
• Weight [g] : 194
• Type of mounting : AS-i flat cables directly connectable
