Description

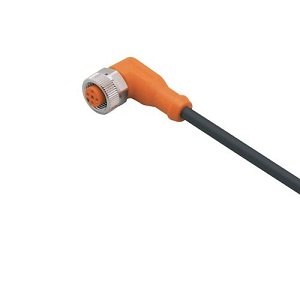

IFM Cable EVC074

• Extended Product Type : Other

• Product ID : EVC074

• IFM Type Designation : Other

Features

• Resistant to oils and coolants
• Permanent, reliable sealing even when mounted without tools
• High protection rating for the requirements of harsh industrial environments
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Mechanical end stop to protect the O-ring from destruction

Specification of IFM EVC074

• Special feature : Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
• Operating voltage [V] : < 60 AC/DC
• Max. current load total [A] : 4
• Weight [g] : 188.6
• Dimensions [mm] :  26.5 x 15.5 x 36.5
• Electrical connection : Cable: 5 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )
• Connector : M12
