Description

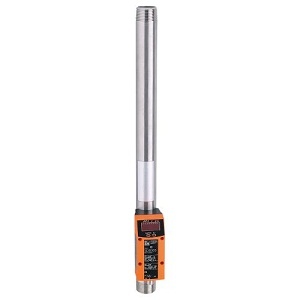

IFM Compressed Air Meter SD8001

• Extended Product Type : Other

• Product ID : SD8001

• IFM Type Designation : Other

Features

• Precise measurement of flow, consumption and medium temperature
• High accuracy, repeatability and measurement dynamics
• For detecting compressed air in industrial use
• With switching output, analogue output and pulse output
• Clearly visible 4-digit LED display

Specification of IFM SD8001

• Number of digital outputs : 2
• Number of digital inputs : 1
• Process connection : threaded connection 1 NPT DN25
• Pressure rating [bar] : 16
• Operating voltage [V] : 19…30 DC
• Current consumption [mA] : < 100
• Output signal : switching signal; analogue signal; pulse signal; (configurable)
• Output function : normally open / normally closed; (parameterisable)
• Weight [g] : 1979.5
• Connector : 1 x M12
