Description

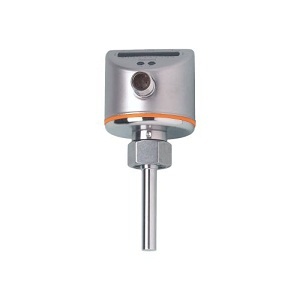

IFM Flow Meter SI5003

• Extended Product Type : Other

• Product ID : SI5003

• IFM Type Designation : Other

Features

• Reliable monitoring of liquids and gases in pipes
• Variable process connection using adapters
• Easy setting of the switch points for quick set-up
• Robust stainless steel housing for use in harsh industrial environments
• LED bar graph for indication of switch point and flow

Specification of IFM SI5003

• Number of digital outputs : 2
• Process connection :  M18 x 1,5 internal thread
• Pressure rating [bar] : 300
• Operating voltage [V] : 19…36 DC
• Current consumption [mA] :  < 60
• Electrical design : NPN
• Output function : normally open / normally closed; (parameterisable)
• Weight [g] : 249.5
• Dimensions [mm] : M18 x 1.5
• Connector : 1 x M12
