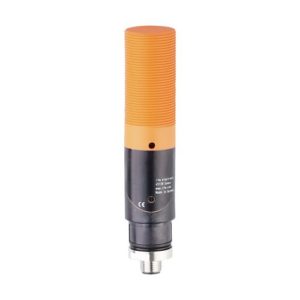

IFM Optical Distance Sensor O1D155

Description

IFM Optical Distance Sensor O1D155

• Extended Product Type : Sensor

• Product ID : O1D155

• IFM Type Designation : Sensor

Features

• Reliable optical distance measurement with high ranges up to 6 m
• Two switching outputs, one of them programmable as analogue output
• Scalable measuring range and window function
• Laser protection class 1 for the requirements of the automotive industry
• Excellent price/performance ratio

Specification

• Operating voltage [V] : 18…30 DC
• Current consumption [mA] : < 150
• Output function : normally open / normally closed; (programmable)
• Materials : housing: diecast zinc; front lens: glass; LED window: PC
• Connection : Connector: 1 x M12
• Weight [g] : 310.5
