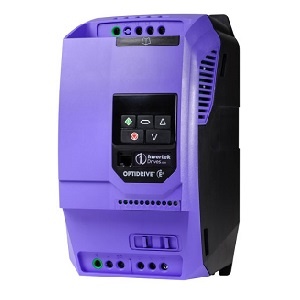

Invertek Drive AC Drives ODE-3-320240-3F42

Description

Invertek Drive AC Drives ODE-3-320240-3F42

• Extended Product Type : AC Drives

• Product ID : ODE-3-320240-3F42

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODE-3-320240-3F42

• Series : ODE-3
• Input Range VAC : 200 to 240 Volts AC
• Input Phase : 3
• HP : 7.5 Horsepower
• Amps : 24 Amps
• Max. Frequency : 500 Hertz
• Braking Type : DC Injection;Dynamic Braking
• Motor Control-Max Level : Open Loop Vector (Sensorless Vector)
• Operator Controls : Built In
• Comments : Sensorless Vector Control For AC Induction And PM Motors, Feed-thru Wiring For Starter Replacement
• Mounting : PANEL
• Dimension(H x W x D) : 10.3 in x 5.2 in x 6.9 in
• Net Weight : 7 lb
