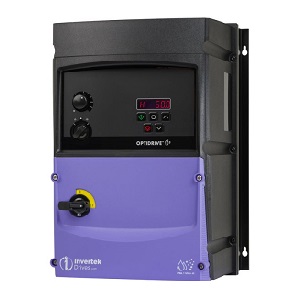

Invertek Drive AC Drives ODE-3-420460-3F4B

Description

Invertek Drive AC Drives ODE-3-420460-3F4B

• Extended Product Type : AC Drives

• Product ID : ODE-3-420460-3F4B

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODE-3-420460-3F4B

• Series : ODE-3
• Input Range VAC : 200 to 240 Volts AC
• Input Phase : 3
• HP : 15 Horsepower
• Amps : 46 Amps
• Max. Frequency : 500 Hertz
• Braking Type : DC Injection;Dynamic Braking
• Motor Control-Max Level : Open Loop Vector (Sensorless Vector)
• Operator Controls : Built In
• Comments : Integral Power Switch, FWD/REV Switch & Potentiometer, NEMA4X Outdoor Rated Enclosure
• Mounting : PANEL
• Dimension(H x W x D) : 14.2 in x 9.5 in x 10.8 in
• Net Weight : 20 lb 14 oz
