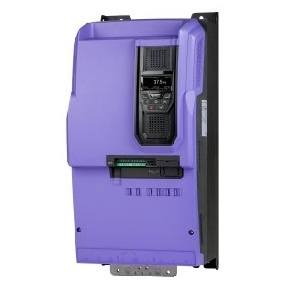

Invertek Drive AC Drives ODP-2-66075-3H042-MN

Description

Invertek Drive AC Drives ODP-2-66075-3H042-MN

• Extended Product Type : AC Drives

• Product ID : ODP-2-66075-3H042-MN

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODP-2-66075-3H042-MN

• Series : ODP-2
• Input Range VAC : 500 to 600 Volts AC
• Input Phase : 3
• HP : 75 Horsepower
• Amps : 78 Amps
• Max. Frequency : 500 Hertz
• Braking Type : AC Flux;Dynamic Braking
• Motor Control-Max Level : Closed Loop Vector
• Operator Controls : Built In
• Comments : Sensorless Vector Control, Optional Closed Loop, Safe Torque Off, Built-in EMC Filter
• Mounting : PANEL
• Dimension(H x W x D) : 24.2 in x 11.3 in x 12.6 in
• Net Weight : 70 lb 8 oz
