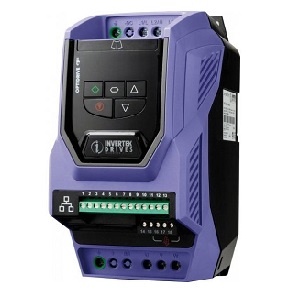

Invertek Drive AC Drives ODV-3-340180-3F12-SN

Description

Invertek Drive AC Drives ODV-3-340180-3F12-SN

• Extended Product Type : AC Drives

• Product ID : ODV-3-340180-3F12-SN

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODV-3-340180-3F12-SN

• Series : ODV-3
• Input Range VAC : 380 to 480 Volts AC
• Input Phase : 3
• HP : 10 Horsepower
• Amps : 18 Amps
• Max. Frequency : 250 Hertz
• Braking Type : AC Flux
• Motor Control-Max Level : Open Loop Vector (Sensorless Vector)
• Operator Controls : Built In
• Comments : Built-in BACnet & EMC Filter, Multiple Pump Control, Fire Mode
• Mounting : PANEL
• Dimension(H x W x D) : 10.3 in x 5.2 in x 8.1 in
• Net Weight : 7 lb 11 oz
