Description

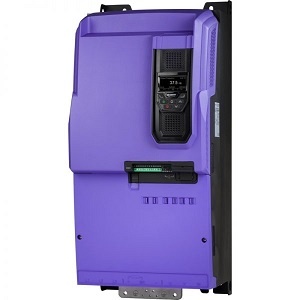

Invertek Drive AC Drives ODV-3-621800-3F12-MN

• Extended Product Type : AC Drives

• Product ID : ODV-3-621800-3F12-MN

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODV-3-621800-3F12-MN

• Series : ODV-3
• Input Range VAC : 200 to 240 Volts AC
• Input Phase : 3
• HP : 60 Horsepower
• Amps : 180 Amps
• Max. Frequency : 250 Hertz
• Braking Type : AC Flux
• Motor Control-Max Level : Open Loop Vector (Sensorless Vector)
• Operator Controls : Built In
• Comments : Built-in BACnet & EMC Filter, Multiple Pump Control, Fire Mode
• Mounting : PANEL
• Dimension(H x W x D) : 28.6 in x 13 in x 12.6 in
• Net Weight : 94 lb 13 oz
