Description

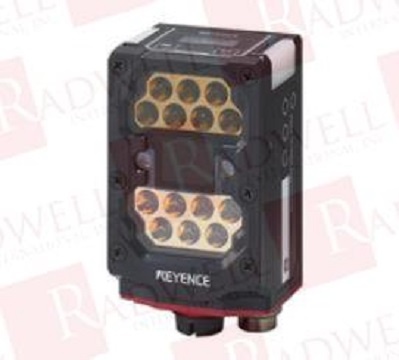

Keyence SR-2000 Series 1D/2D Code Reader Sensor SR2000

• Extended Product Type: Sensor
• Product ID: SR-2000
• Keyence Type Designation: Sensor

Description of Keyence SR-2000 Series 1D/2D Code Reader

The SR-2000 Series of 1D/2D code readers achieve high speed reading over long distances with a wide field of view and large depth of field. With a field of view more than twice that of conventional models, these scanners support simultaneous reading of multiple barcodes and varying positions, contributing to shorter cycle times and increased stability. Also, this series achieves a reading distance that is more than double that of conventional models, so there is no need for barcode position control or changeovers. This 1D/2D code reader can instantly read codes on moving objects such as sites using conveyors or robotic transfers. No expert imaging knowledge is required, and there is no need for additional lighting or other external equipment. The fully automatic calibration function easily makes automatic code reading stable under a variety of conditions just by installing the unit.

Specifications of Keyence SR-2000 Series 1D/2D Code Reader Sensor SR2000

• Model: SR-2000
• Sensor: CMOS image sensor
• Number of pixels: 2048 × 1536
• Focus: Auto*1
• Light source: High-intensity red LED
• Pointer light source: High-intensity green LED
• 2D code: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417, MicroPDF417, GS1 Composite (CC-A/CC-B/CC-C), DotCode
• Barcode: CODE39, ITF, 2of5 (Industrial 2of5), COOP 2of5, NW-7 (Codabar), CODE128, GS1-128, GS1 DataBar, CODE93, JAN/EAN/UPC, Trioptic CODE39, CODE39 Full ASCII, Pharmacode, Postal (Japan Postal, IMB)
• 2D code: 0.040 mm 0.0016″
• Barcode: 0.082 mm 0.0032″
• Reading distance: 100 to 2000 mm 3.94″ to 78.74″
• Field of view for reading: at 800 mm 31.50″: 263 × 197 mm 10.35″ × 7.76″
• Number of Inputs: 2
• Input type: Bidirectional voltage input
• Maximum rating: 26.4 VDC
• Minimum ON voltage: 15 VDC
• Maximum OFF current: 0.2 mA
• Number of Outputs: 3
• Output type: Photo MOS relay output
• Maximum rating: 30 VDC
• Maximum load current: Single output: 50 mA or less, 3-output total: 100 mA or less
• Leakage current when OFF: 0.1 mA or less
• Residual voltage when ON: 1 V or less
• Communication standard: IEEE 802.3-compliant, 10BASE-T/100BASE-TX
• Supported protocol: TCP/IP, SNTP, FTP, BOOTP, EtherNet/IP, PROFINET, KV STUDIO, MC Protocol, OMRON PLC Link
• Communication standard: RS-232C-compliant
• Communication speed: 9600, 19200, 38400, 57600, 115200 bps
• Supported protocol: No-protocol, KV STUDIO, MC protocol, SYSWAY
