Description

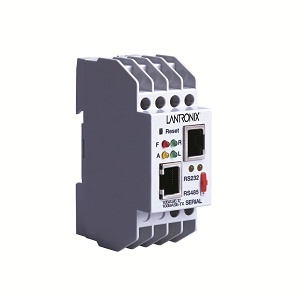

Lantronix Networking Module XSDRSN-02

• Extended Product Type : Other

• Product ID : XSDRSN-02

• Lantronix Type Designation : Other

Features

• Connect enterprise (ERP,MES) systems to factory floor devices without disturbing existing control networks
• Allow remote firmware upgrades, saving money and time from manual upgrades
• IAP version supports installable industrial communication protocols
• Configurable serial interface supports RS-232, RS-422, or RS-485
• 10Base-T/100Base-TX Ethernet (RJ45)
• Isolated serial and Ethernet ports

Specification of Lantronix XSDRSN-02

• Interface : RS-232, RS-422, or RS-485
• Connector : Screw terminals or RJ45
• Data Rates : 300 to 115,200 bps
• Characters : 7 or 8 data bits
• Connector : RJ45
• Input : 9 to 30VDC/9-24VAC, 3W maximum
• Connector : Screw terminals for power and ground
• Mounting : DIN-rail (35 mm)
