Description

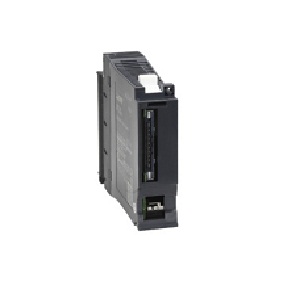

Mitsubishi RY10R2 AC/DC Relay Digital Output Module Code: 1FM153

• Extended Product Type: PLC
• Product ID: RY10R2
• Product Code: 1FM153
• Mitsubishi Type Designation: PLC

Description of Mitsubishi RY10R2 Relay Digital Output Module

Mitsubishi RY10R2 AC/DC relay digital output module – (MELSEC iQ-R Series) – 16I/O [16DO (16 x digital outputs (Rly NO contact; 2A / 240Vac or 24Vdc; 12ms response))] – with screw-clamp term. connections – Backplane / rack mounting

Specifications of Mitsubishi RY10R2 AC/DC Relay Digital Output Backplane Module

• Type: IQ-R SERIES
• Current Type: DC
• Int. Current Consumption (A): 0,18
• Occupied I/O Points on PLC: 16
• Integrated Digital Inputs: 16
• Power Supply (V): 24
• Dimension(W x H x D)mm: 27,8 x 98 (106) x 131
• Weight(kg): 0,22
