Description

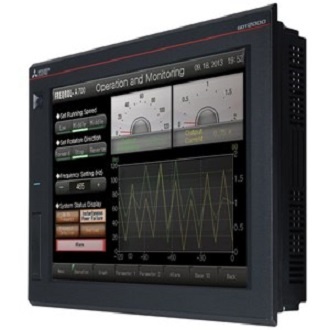

Mitsubishi GT2705-VTBD-K Graphic Operator Terminal GT2705VTBDK

• Extended Product Type: HMI
• Product ID: GT2705-VTBD-K
• Mitsubishi Type Designation: HMI

Description of Mitsubishi GT2705-VTBD-K Graphic Operator Terminal

Mitsubishi Advanced Graphic Operation Programmable Terminal (GOT / PT) touchscreen HMI bundle with GTW3 software. + USB cable – (GOT2000 series GT27) – 5.7″ 640x480pixels (VGA) TFT 65536 (65k) color display with LED backlight / Analog resistive film digitizer – Black frame – 57MBytes (ROM) memory capacity – with 2 x USB type-A (host) connectors + USB mini-B (device) connector + 9-pin D-Sub male connector (RS-232) + 9-pin D-Sub female connector (RS-422/RS-485) – with RS-232 + RS-422 + RS-485 + Ethernet + CC-Link communication capability – Supply voltage 24Vdc – Flush mounting – IP67 – equivalent to GT2705VTBDK

Specifications of Mitsubishi GT2705-VTBD-K Graphic Operator Terminal

• Type: TOUCH PANEL
• Power Supply (V): 24
• Current Type: DC
• Display: TFT
• Display Color: 65536
• Display Size (Inch): 10,4
• Resolution (Pixels): 640X480
• Internal Memory Capacity (MB) : 128
• Memory Card Slot: SD
• Network Options: MODBUS,CCLINK,M’NET,ETH,BUS
• Dimension(W x H x D in mm) : 303  x 218 x 52
• Weight (kg) : 2,1
