Description

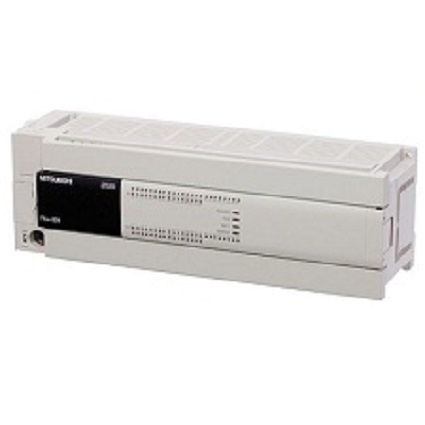

Mitsubishi FX3U-48MR/DS PLC Base Unit Module FX3U48MRDS

• Extended Product Type: FX-series

• Product ID: FX3U-48MR/DS

• Mitsubishi Type Designation: FX-series

• Description: PLC, FX3U Base Unit AC 100-240 V; 24 inputs DC 24 V; 24 relay outputs

Features of Mitsubishi PLC FX3U Base Unit FX3U-48MR/DS

• Three memory cassettes that can be installed into the FX3U CPU, and when installed the memory cassette’s internal program is used in place of the internal RAM memory. The FX3U-FLROM-64L (stock no. 539-0853) features program transfer buttons to allow permanent overwriting of the RAM based-program. FX3U battery – this battery buffers the internal RAM memory of the FX3U in the event of a power supply failure. FX3U-USB-AW converts USB interface to RS422 to allowing direct programming of FX3U PLCs using a PC’s USB port with either GX Developer or GX IEC Developer programming software.
• Flash ROM modules in 16kB and 64kB sizes with a program loader version of the 64k to allow program transfer to/from PLC’s.

Specification of Mitsubishi PLC FX3U Base Unit FX3U-48MR/DS

• Power Supply (V): 100-240
• Current Type: AC
• Power Consumption (W): 40
• Protection Class: IP10
• Min. Ambient Temperature (°C): 0
• Max. Ambient Temperature (°C): 55

PRODUCT DIMENSIONS & WEIGHT

• Width (mm): 182
• Height (mm): 90
• Depth (mm): 86
• Weight (kg): 0,85
