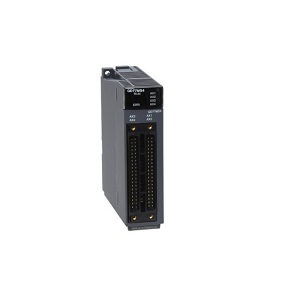

Mitsubishi Q Series QD77MS4 Simple Motion Module

Description

Mitsubishi Q Series QD77MS4 Simple Motion Module

• Extended Product Type : PLC

• Product ID : QD77MS4

• Mitsubishi Type Designation :  PLC

• Number of control axes (including the virtual servo amplifier axis) : Up to 4 axes
• Operation cycle (calculation cycle setting) * 1 : 0.88 ms, 1.77 ms
• Interpolation function : Linear interpolation (maximum 4 axes), 2 axis circular interpolation
• control method : PTP (Point To Point), trajectory control (both linear and arc configurable), speed control, speed / position switching control, position / speed switching control, speed / torque control
• Acceleration / deceleration processing : Trapezoidal acceleration / deceleration, S-shaped acceleration / deceleration

Specifications of Mitsubishi Q Series QD77MS4

• Type : Q SERIES
• Number of Axes : 4
• Program Capacity : 600
• Program Capacity Unit : POSITIONING DATA / AXIS
• Inputs : 4
• Dimension(W x H x D in mm) : 27,4 x 98  x 90
• Weight (kg) : 0,16
