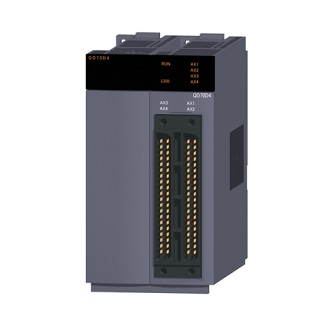

Mitsubishi QD70D4 Differential Output Positioning Module

Simple Control and Fast-Response, Differential Driver, 4-Axis, Stepper Motor Control Positioning Module Stepper Motor Control Positioning Module; Type Positioning Module, Simple Control and Fast-Response, Differential Driver, 4-Axis; Used On Stepper Motor Control; Control Method Point-to-Point Control, Path Control (Linear Only), Speed-Position Switching Control

Brand: MITSUBISHI
Name: Differential output positioning module
Model: QD70D4
4 axis, differential drive output type.
Control unit: pulse.
Location data: 10 data / axis.
Maximum pulse output: 4Mpps.
40 pin connector.
Differential output.
Ideal solution for simple multi axis positioning.
Perfect match with stepper motor control.
Plus deceleration smooth, speed change subtle.
To speed up the speed of positioning control to start processing.
Positioning module.
Open collector output.
Differential driver output.
Based on the use of open collector outputs and differential drive output type 2 types.
Differential driver output type positioning module can transmit high speed instruction pulse (up to 4Mpps) to the servo amplifier reliably,
Transmission distance of up to 10 meters, to achieve high speed and high precision control.
(the command pulse of the open collector positioning module is highest 200kpps.)
Reduce system downtime recovery time.
With a simple operation, you can back up all the data in the CPU to the memory card.
Through regular backup, can be the latest parameters, procedures, etc. to save the storage card.
In the event of a CPU failure, after the replacement of CPU, can be a simple operation,
Restore the system by using the data storage card in advance.
Therefore, it is not necessary to spend time to manage the backup data, but also can shorten the recovery time of the system shutdown.
