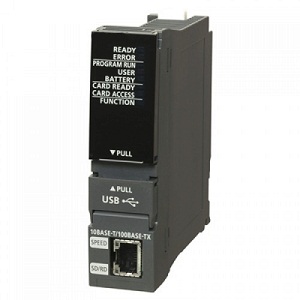

Mitsubishi R16CPU PLC CPU I/O Ethernet Communication Module

• Extended Product Type: PLC
• Product ID: R16CPU
• Mitsubishi Type Designation: PLC

Description of Mitsubishi R16CPU CPU I/O Ethernet Module

Mitsubishi R16CPU Programmable Logic Controller (PLC) CPU unit – (MELSEC iQ-R Series) – 160Ksteps / 640KBytes (Program) memory capacity – connection capacity 4096 x I/O points max – with USB2.0 connector – with Ethernet communication capability – Supply voltage 5Vdc (from dedicated iQ-R series P.S.U.) – Backplane / rack mounting

Specifications of Mitsubishi MELSEC iQ-R Series R16CPU Module

• Primary brand: Mitsubishi Electric
• Main function: CPU unit
• Product series / family name: MELSEC iQ-R Series
• Functions: Programmable Logic Controller (PLC) CPU unit
  • Program execution type — Initial
  • Program execution type — Scan
  • Program execution type — fixed scan
  • Program execution type — interrupt
  • Program execution type — standby type
  • Multiple interrupt
  • Standard PID control
  • Internal database
  • Memory dump
  • Data logging
  • Real-time monitor
  • Security
  • Inter-modular synchronization
• Supply voltage (DC): 5Vdc (from dedicated iQ-R series P.S.U.)
• Memory capacity: 160Ksteps / 640KBytes (Program), 1720KBytes (Device/label memory), 10MBytes (Data memory)
• Connection capacity: 4096 x I/O points max
• Connection type: USB2.0 connector, RJ45 port (Ethernet)
• Communication protocol: Ethernet
• Mounting mode: Backplane / rack
• Speed: processing; PC MIX value — 419 instructions/μs
• Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), Function block (FB), label programming (system/local/global)
• Processing time: 0.00098μs / instruction (LD instruction) – 0.00000098 ms
  • 0.00196μs / instruction (MOV instruction) – 0.00000196 ms
  • 0.0098μs / E + instruction (floating-point addition) – 0.0098 ms
  • 0.00196μs / instruction (Structured text IF instruction) – 0.00000196 ms
  • (Structured text FOR instruction) 1.96ns / 0.00000196 ms
• Manufacturer product status: Commercialized
• Storage type: SD memory card, Extended SRAM cassette
