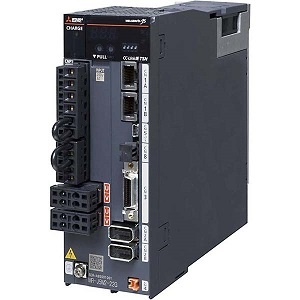

Mitsubishi MR-J5W2-44G AC Motion Servo Drive Amplifier MRJ5W244G
- Extended Product Type: Servo Motor
-
- Product ID: MR-J5W2-44G
- Mitsubishi Type Designation: Servo Motor
Description of Mitsubishi MR-J5W2-44G Servo Drive Amplifier
Mitsubishi MR-J5W2-44G Double (2-axis) AC motion servo drive / amplifier with built-in dynamic brake + built-in regenerative resistor – Mitsubishi Electric (MELSERVO J5 – MR-J5 series) – Rated output 400W / 0.4kW – Rated current 2.8A – Supply voltage 200Vac-240Vac (200V class; 220Vac / 230Vac) / 283Vdc-340Vdc (Single-phase input (2P) or 3-phase input (3P) or DC input) – with CC-Link communication capability – IP20 – rated for 0…+60°C ambient – equivalent to MRJ5W244G
Specification of Mitsubishi MR-J5W2-44G AC Servo Drive Amplifier
- Primary brand: Mitsubishi Electric
- Main function: AC servo drive
- Product series / family name: Industrial automation > Drive products > Servo systems > AC Servo drives > MELSERVO J5 series
- Sub-range name: MELSERVO J5 – MR-J5 series
- Functions: Double (2-axis) AC motion servo drive / amplifier, positioning mode, sine wave PWM control/current control method, point table method, 2-channel analog monitor, Safe torque off (STO), fully closed loop control, load-side encoder interface, TSN-compatible, advanced vibration suppression control II, adaptive filter II, robust filter, quick tuning, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function (including failure prediction), power monitoring function, lost motion compensation, scale measurement function, super trace control
- Design: built-in dynamic brake, built-in regenerative resistor, forced ventilation cooling
- Supply voltage (AC): 200Vac-240Vac (200V class; 220Vac / 230Vac)
- Supply voltage (DC): 283Vdc-340Vdc
- Type of network: 3-phase input (3P)
- Rated current: 6A
- Rated active power (kW): 1000W / 1kW
- Protection functions: overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder fault protection, regenerative fault protection, under-voltage protection, instantaneous power failure protection, overspeed protection, excessive error protection, magnetic pole detection protection, linear servo control fault protection
- Communication protocol: EtherCAT
- Digital inputs: 1 x digital input (24Vdc; sink/source) (EM2)
- 1 x digital input (24Vdc; sink/source) (DI1)
- 1 x digital input (24Vdc; sink/source) (DI2)
- 1 x digital input (24Vdc; sink/source) (DI3)
- Digital outputs: 1 x digital output (rly. contact type) (CALM)
- 1 x digital relay output (MBR)
- Analog outputs: 1 x analog output (-10…+10Vdc) (MO1)
- 1 x analog output (-10…+10Vdc) (MO2)
- Degree of protection: IP20
- Ambient air temperature for operation: 0…+60 °C
- Ambient air temperature for storage: -25°C…+70 °C
- Current consumption: 9.8A input
- Power consumption: (drive auxiliary power consumption) 55 W
- Order code / Manufacturer SKU: MR-J5W2-44G
- Manufacturer product status: Commercialized
- Equivalent to: MRJ5W244G
- Manufacturer description: Dual Amp Ecat 1KW 200V
- Compliant with standard(s): CE marking, TUV Rheinland, cULus, UL, KC, EN61800-5-2, EN61800-5-1, EN61800-3, EN ISO 13849-1 PLe Cat3/4, EN62061, SILCL3, IEC61508-5-2, EN63000, UL61800-5-1, CSA, GB, KSC9800-3, KN61800-3
Benefits
high-speed serial communication, large-capacity communication (1Gbps), command communication cycle of ≥ 31.25μs and speed frequency response of 3.5kHz enable advanced motion control
