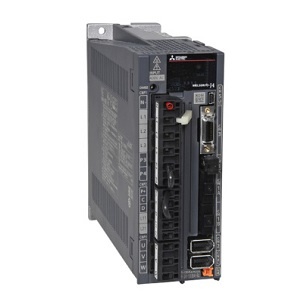

Mitsubishi MR-J4-100B4-RJ AC Motion Servo Drive MRJ4100B4RJ
$2,400.00
AVAILABILITY: Generally allow 7-10 days to ship
10 in stock
Description
Mitsubishi MR-J4-100B4-RJ AC Motion Servo Drive MRJ4100B4RJ
- Extended Product Type: Servo Motor
- Product ID: MR-J4-100B4-RJ
- Mitsubishi Type Designation: Servo Motor
Description of Mitsubishi MR-J4-100B4-RJ AC Servo Drive
Mitsubishi MR-J4-100B4-RJ AC motion servo drive / amplifier with built-in dynamic brake + built-in regenerative resistor + safety unit compatibility – (MELSERVO J4 series) – Rated output 1000W / 1kW – Rated current 2.8A – Supply voltage 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac) / 283Vdc-340Vdc (3-phase input (3P) or DC input) – with SSCNET III/H communication capability – IP20 – rated for 0…+55°C ambient – equivalent to MRJ4100B4RJ
Specification of Mitsubishi MR-J4-100B4-RJ AC Motion Servo Drive
- Primary brand: Mitsubishi Electric
- Main function: AC servo drive
- Product series / family name: MELSERVO J4 series
- Sub-range name: MR-J4 series
- Functions: AC motion servo drive / amplifier
- sine wave PWM control/current control method
- 2-channel analog monitor
- Safe torque off (STO)
- fully closed loop control
- load-side encoder interface
- advanced vibration suppression control II
- adaptive filter II
- robust filter
- auto tuning
- one-touch tuning
- tough drive function
- drive recorder function
- tightening & press-fit function
- machine diagnosis function
- power monitoring function
- controller-peripheral operation function
- scale measurement function
- J3 compatibility mode
- super trace control
- lost motion compensation
- Design: built-in dynamic brake, built-in regenerative resistor, safety unit compatibility, 2-wire or 4-wire type communication method, natural cooling, SSCNET III/H
- Supply voltage (AC): 380Vac-480Vac (400V class; 400Vac / 415Vac / 440Vac)
- Supply voltage (DC): 283Vdc-340Vdc
- Type of network: 3-phase input (3P) or DC input
- Rated current: 2.8A
- Rated active power (kW): 1000W / 1kW
- Protection functions: overcurrent shut-off
- regenerative overvoltage shut-off
- overload shut-off (electronic thermal)
- servo motor overheat protection
- encoder fault protection
- regenerative fault protection
- under voltage protection
- instantaneous power failure protection
- overspeed protection
- excessive error protection
- magnetic pole detection protection
- linear servo control fault protection
- Digital inputs: 1 x digital input (24Vdc; sink/source) (EM2)
- 1 x digital input (24Vdc; sink/source) (FLS)
- 1 x digital input (24Vdc; sink/source) (RLS)
- 1 x digital input (24Vdc; sink/source) (DOG)
- Digital outputs: 1 x digital output (rly. contact type) (ALM)
- 1 x digital relay output (MBR)
- 1 x digital output (rly. contact type) (INP)
- Analog outputs: 1 x analog output (-10…+10Vdc) (MO1)
- 1 x analog output (-10…+10Vdc) (MO2)
- Degree of protection: IP20
- Ambient air temperature for operation: 0…+55 °C
- Ambient air temperature for storage: -20°C…+65 °C
- Current consumption: 2.5A input
- Power consumption: (drive auxiliary power consumption) 30 W
- Order code / Manufacturer SKU: MR-J4-100B4-RJ
- Manufacturer product status: Commercialized
- Equivalent to: MRJ4100B4RJ
- Compliant with standard(s): CE marking, TUV Rheinland, cULus, UL, KC, EN61800-5-2, EN61800-5-1, EN61800-3, EN ISO 13849-1 PLe Cat3, EN62061, SILCL3, IEC61508-5-2, EN50581, UL508C, CSA, KC, EAC
- Benefits: high-speed serial communication, A/B/Z-phase differential input signal, Recommended accessories
- compatible with servo motors: HG-SR1024 (2.8A), HG-JR734 (2.8A), HG-JR1034 (2.8A), HG-JR534W0C (1.5A), HG-SR1024W0C (2.8A), HG-JR734W0C (2.8A), HG-JR1034W0C (2.8A)
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 5 × 10 in |
