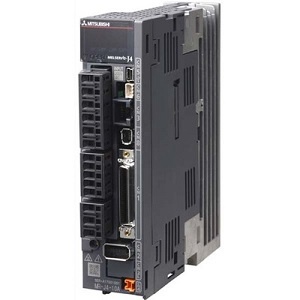

Mitsubishi MR-J4-500A-ED Motion Servo Drive Amplifier MRJ4500AED

$4,080.00

AVAILABILITY: Generally allow 7-10 days to ship

Mitsubishi MR-J4-500A-ED AC motion servo drive / amplifier with built-in regenerative resistor – Mitsubishi Electric (MELSERVO J4 – MR-J4 series) – Rated output 5000W / 5kW – Rated current 28A – Supply voltage 200Vac-240Vac (200V class; 220Vac / 230Vac) (Single-phase input (2P) or 3-phase input (3P)) – with RS-422 / RS-485 communication capability – IP20 – rated for 0…+55°C ambient – equivalent to MRJ4500AED

  • Same-day shipping on in-stock items ordered by 4:00 PM Eastern
  • 1-year warranty on most products

Description

Mitsubishi MR-J4-500A-ED Motion Servo Drive Amplifier MRJ4500AED

  • Extended Product  Type: Servo Motor
  • Product ID: MR-J4-500A-ED
  • Mitsubishi Type Designation: Servo Motor

Description of Mitsubishi MR-J4-500A-ED AC Motion Servo Drive Amplifier

Mitsubishi MR-J4-500A-ED AC motion servo drive / amplifier with built-in regenerative resistor – Mitsubishi Electric (MELSERVO J4 – MR-J4 series) – Rated output 5000W / 5kW – Rated current 28A – Supply voltage 200Vac-240Vac (200V class; 220Vac / 230Vac) (Single-phase input (2P) or 3-phase input (3P)) – with RS-422 / RS-485 communication capability – IP20 – rated for 0…+55°C ambient – equivalent to MRJ4500AED

Specifications of MR-J4-500A-ED AC Motion Servo Drive Amplifier

  • Primary brand: Mitsubishi Electric
  • Main function: AC servo drive
  • Product series / family name: MELSERVO J4 series
  • Sub-range name: MR-J4 series
  • Functions: AC motion servo drive / amplifier, positioning mode. sine wave PWM control/current control method, point table method, Indexer (turret) method, program method, 2-channel analog monitor, Safe torque off (STO), fully closed loop control, load-side encoder interface, speed control mode, torque control mode, advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function, super trace control, lost motion compensation
  • Design: built-in dynamic brake, built-in regenerative resistor, safety unit compatibility, 2-wire or 4-wire type communication method, forced ventilation cooling
  • Supply voltage (AC): 200Vac-240Vac (200V class; 220Vac / 230Vac)
  • Supply voltage (DC): 283Vdc-340Vdc
  • Type of network: Single-phase input (2P) or 3-phase input (3P) or DC input
  • Rated current: 28A
  • Rated active power (kW): 5000W / 5kW
  • Protection functions: overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder fault protection, regenerative fault protection, under voltage protection, instantaneous power failure protection, overspeed protection, excessive error protection, magnetic pole detection protection, linear servo control fault protection
  • Communication protocol: CC-Link
  • Digital inputs: 1 x digital input (24Vdc; sink/source) (EM2)
    • 1 x digital input (24Vdc; sink/source) (LSP)
    • 1 x digital input (24Vdc; sink/source) (LSN)
    • 1 x digital input (24Vdc; sink/source) (DOG)
    • 1 x digital input (24Vdc; sink/source) (TPR1)
    • 1 x digital input (24Vdc; sink/source) (TPR2)
  • Digital outputs: 1 x digital output (rly. contact type) (ALM)
    • 1 x digital relay output (MBR)
    • 1 x digital output (rly. contact type) (INP)
  • Analog outputs: 1 x analog output (-10…+10Vdc) (MO1)
    • 1 x analog output (-10…+10Vdc) (MO2)
  • Degree of protection: IP20
  • Ambient air temperature for operation: 0…+55 °C
  • Ambient air temperature for storage: -20°C…+65 °C
  • Current consumption: 21.7A input
  • Power consumption: (drive auxiliary power consumption) 45 W
  • Equivalent to: MR-J4-500A-ED
  • Order code / Manufacturer SKU: MRJ4500AED
  • Manufacturer description: SERVO AMP 5KW 200V
  • Compliant with standard(s): CE marking, TUV Rheinland, cULus, UL, KC, EN61800-5-2, EN61800-5-1, EN61800-3, EN ISO 13849-1 PLe Cat3, EN62061, SILCL3, IEC61508-5-2, EN50581, UL508C, CSA, KC, EAC

Additional information

Weight 2 lbs
Dimensions 8 × 8 × 10 in
