Description

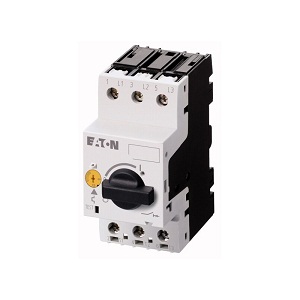

Moeller Motor Protector PKZM0-6,3

• Extended Product Type : Circuit Breaker

• Product ID  : PKZM0-6,3

• Moeller Type Designation : Circuit Breaker

Description

• Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM0, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, with screw terminal, cap installation dimension 45mm, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release, contact module, clip plate

Specification of Moeller PKZM0-6,3

• Connection technique : Screw terminals
• Rated uninterrupted current : 6.3 A
• Number of poles : 3
• Rated operational voltage  : 690 V
• Current heat loss  : 5.68 W
• Short-circuit rating : 60 kA
