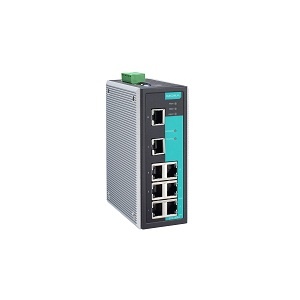

Moxa 8-PORT Managed Ethernet Switch EDS-408A

Description

MOXA 8-PORT Managed Ethernet Switch EDS-408A

• Extended Product Type : Other

• Product ID : EDS-408A

• MOXA Type Designation : Other

Features

• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
• IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
• Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
• PROFINET or EtherNet/IP enabled by default (PN or EIP models)
• Supports MXstudio for easy, visualized industrial network management

Specification of MOXA EDS-408A

• Ethernet Interface : Turbo Ring, Master, Coupler, Reserve
• Alarm Contact Channels : Relay output with current carrying capacity of 1 A @ 24 VDC
• Connection : 1 removable 6-contact terminal block(s)
• Dimensions :  53.6 x 135 x 105 mm
