Omron Analog I/O Option Board NX1W-ADB21

Description

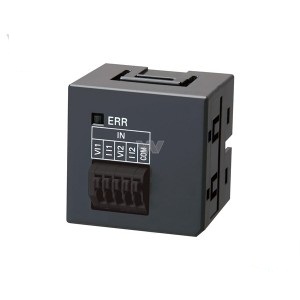

Omron Analog I/O Option Board NX1W-ADB21

• Extended Product Type: NX1P2 CPU UNIT

• Product ID: NX1W-ADB21

• OMRON Type Designation: NX1P2 CPU UNIT

• Description: Option Card, I/O NX Series

• Long Description: I/O MODULE ANALOG FOR NX1

Features

• Integrated sequence control and motion control
• Up to eight axes of control via EtherCAT
• Up to four synchronized axes – electronic gear/cam and linear/circular interpolation
• Standard-feature EtherCAT control network support
• Safety subsystem on EtherCAT
• Standard-feature EtherNet/IP port
• Built-in I/O
• Up to eight NX I/O Units connectable
• Up to sixteen remote NX I/O Units connectable via EtherCAT coupler
• Up to two option boards connectable to add serial communications or analog I/O functionality
• Battery-free operation
• Fully conforms with IEC 61131-3 standard programming

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL(Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus(Class I Division 2
Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, CE: EU Directives, EAC: EAC mark, RCM: Regulatory Compliance Mark and KC: KC Registration.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Specification

• Analog input: 2
• Voltage input: 0 to 10 V (Resolution: 1/4,000).
• Current input: 0 to 20 mA (1/2,000)
• Connection type: Screwless clamping terminal block (5 terminals)
