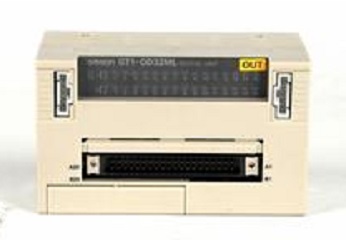

Omron Digital I/O Unit GT1-OD32ML-1

Description

Omron Digital I/O Unit GT1-OD32ML-1

• Extended Product Type: GT1

• Product ID: GT1-OD32ML-1

• OMRON Type Designation: GT1

• Description: CONN 32PT MC OUTPUT PNP

Features

• Terminal block, connector, and high-density connector models are available.

• The circuit block of the terminal block model can be mounted or dismounted for ease of maintenance without disconnecting the wires.

• DIN track mounting.

International Standards

• The standards indicated in the “Standard” column are those current for UL, CSA, cULus, cUL, NK, and Lloyd standards and EC Directives as of the end of March 2009. (U: The standards are abbreviated as follows: U: UL, U1: UL Class I Division 2 Products for Hazardous Locations, C: CSA, UC: cULus, UC1: cULus Class I division 2 Products for Hazardous Locations, CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Ask your OMRON representative for the conditions under which the standards were met.

Specification

• Current consumption: 65 mA max
• Dielectric strength: 500 VAC
• Terminal strength : No damage when 100 N pull load was applied)
• Leakage current : 0.1 mA max.
• Digital output : PNP (+ common)
