Description

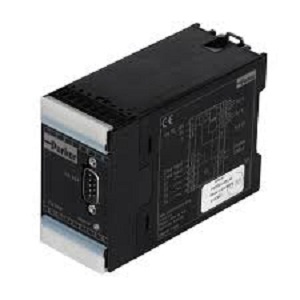

Parker Electronic Module PWD00A-400

• Extended Product Type : Other

• Product ID : PWD00A-400

• Parker Type Designation : Other

Specification of Parker PWD00A-400

• Supply Voltage : 18 VDC to 30 VDC, ripple < 5% eff., surge free
• Current Consumption Max : 2.0A
• Pre-fusing : 2.5A medium lag
• Mounting Position : Any
• Status Signal : Off – 0 to 0.5 VDC; On – Supply Voltage; rated max. 15 mA
• Connection :  Screw terminals 0.2 to 2.5 mm², plug-in
• Cable Length : 50m (164 ft.)
