Description

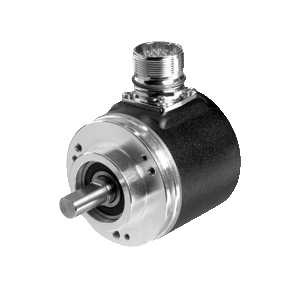

P+F FVS58N-011K2R3GN-0013 Encoder FVS58N011K2R3GN0013

• Extended Product Type: Encoder
• Product ID: FVS58N-011K2R3GN-0013
• P+F Type Designation: Encoder

Features of P+F FVS58N-011K2R3GN-0013 Encoder

• Industrial standard housing ∅58 mm
• 13 Bit single turn
• Output code: gray and binary
• Short-circuit proof push-pull output
• Inputs for selecting counting direction, LATCH, and PRESET
• Code change frequency up to 400 kHz
• Servo or clamping flange

Specification of P+F FVS58N-011K2R3GN-0013 Encoder

• Operating voltage: 10 … 30 V DC
• Output code: Gray code, binary code and Gray excess code
• Input type: zero-set (PRESET)
• Connector: type 9424 (M23), 19-pin
• Mass: approx. 200 g (combination 1),  approx. 400 g (combination 2)
