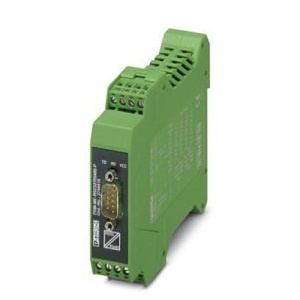

Phoenix Interface Converter PSM-ME-RS232/RS485-P

Description

Phoenix Interface Converter PSM-ME-RS232/RS485-P

• Extended Product Type : Other

• Product ID : PSM-ME-RS232/RS485-P

• Phoenix Type Designation : Other

Specification of Phoenix PSM-ME-RS232/RS485-P

• Width : 22.5 mm
• Height : 99 mm
• Depth : 114.5 mm
• Transmission channels : 2 (1/1), RxD, TxD, full duplex
• Nominal supply voltage : 24 V AC/DC
• Supply voltage range : 18 V AC/DC … 30 V AC/DC
• Max. current consumption : 100 mA
• Interface 1 : V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
• Interface 2 : RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1
• Color : green
• Net weight : 196.1 g
