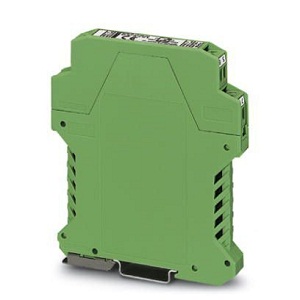

Phoenix MCR 3-Way Isolating Amplifier MCR-C-I-I-00-DC

Description

Phoenix MCR 3-Way Isolating Amplifier MCR-C-I-I-00-DC

• Extended Product Type : Other

• Product ID : MCR-C-I-I-00-DC

• Phoenix Type Designation : Other

Specification of Phoenix MCR-C-I-I-00-DC

• Width : 12.5 mm
• Height : 99 mm
• Depth : 114.5 mm
• Number of inputs : 1
• Current input signal :  0 mA … 20 mA
• Max. input current : 50 mA
• Number of outputs : 1
• Max. output current : 30 mA
• Supply voltage range : 20 V DC … 30 V DC
• Typical current consumption : 15 mA
• No. of channels : 1
• Color : green
