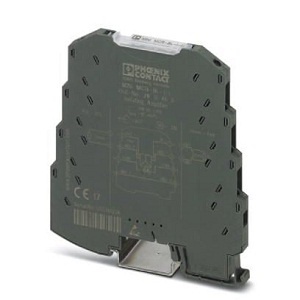

Phoenix MCR 3-way Isolating Amplifier MINI MCR-BL-I-I

Description

Phoenix MCR 3-Way Isolating Amplifier MINI MCR-BL-I-I

• Extended Product Type : Other

• Product ID : MINI MCR-BL-I-I

• Phoenix Type Designation : Other

Specification of Phoenix MINI MCR-BL-I-I

• Width : 6.2 mm
• Height : 93.1 mm
• Depth : 102.5 mm
• Number of inputs : 1
• Max. input current : 50 mA
• Number of outputs : 1
• Max. output current : 28 mA
• Nominal supply voltage : 24 V DC ±10 %
• Max. current consumption :  < 20 mA
• No. of channels : 1
• Connection method : Screw connection
