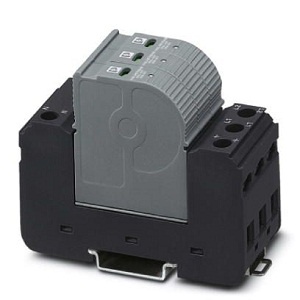

Phoenix Pluggable Arrester VAL-CP-3C-350

Description

Phoenix Pluggable Arrester VAL-CP-3C-350

• Extended Product Type : Other

• Product ID : VAL-CP-3C-350

• Phoenix Type Designation : Other

Description

• Plug-in surge arrester for 3-phase power supply networks with N and PE in a common conductor (4-conductor system: L1, L2, L3, PEN), with remote indication contact.

Specification of Phoenix VAL-CP-3C-350

• Width : 37.25 mm
• Height : 98 mm
• Depth : 71.5 mm
• Type :  DIN rail module, two-section, divisible
• Mounting type : DIN rail: 35 mm
• Number of positions : 3
• Maximum continuous operating voltage : 350 V AC
