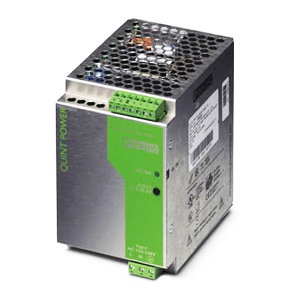

Phoenix Power Supply QUINT-PS-100-240AC/24DC/2.5

Description

Phoenix Power Supply QUINT-PS-100-240AC/24DC/2.5

• Extended Product Type : Power Supply

• Product ID : QUINT-PS-100-240AC/24DC/2.5

• Phoenix Type Designation : Power Supply

Description

• QUINT POWER is the powerful 60 – 960 W DC power supply unit for universal use. With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled. QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure mains buffering of over 20 ms at full load. Full output power is provided by all three-phase devices, even in the event of a permanent phase failure. The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.

Specification of Phoenix QUINT-PS-100-240AC/24DC/10

• Nominal input voltage range : 100 V AC … 240 V AC
• power consumption : 67 W
• Nominal output voltage : 24 V DC ±1 %
• Output power : 60 W
• Output current : 2.5 A
• Dimension(W x H x D) : 55 x 130 x 125 mm.
• Net weight :  0.85 kg
