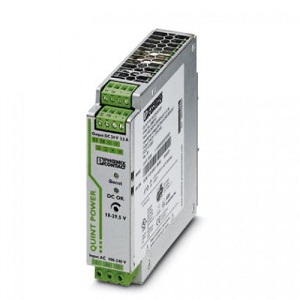

Phoenix Power Supply QUINT-PS/ 1AC/24DC/ 3.5

Description

Phoenix Power Supply QUINT-PS/ 1AC/24DC/ 3.5

• Extended Product Type : Power Supply

• Product ID : QUINT-PS/ 1AC/24DC/ 3.5

• Phoenix Type Designation : Power Supply

Description

• QUINT POWER power supplies with maximum functionality
• QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
• Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC … 56 V DC are covered.

Specification of Phoenix QUINT-PS/ 1AC/24DC/ 3.5

• Nominal input voltage range : 100 V AC … 240 V AC
• power consumption : 180 VA
• Nominal output voltage : 24 V DC ±1 %
• Output power : 84 W
• Output current : 3.5 A
• Dimension(W x H x D) : 32 x 130 x 125 mm.
• Net weight  : 0.5 kg
