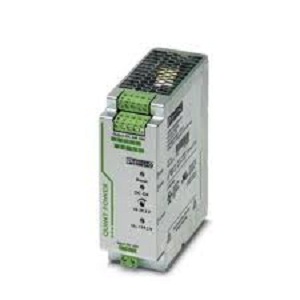

Phoenix Power Supply QUINT-PS- 24DC/24DC/10

Description

Phoenix Power Supply QUINT-PS- 24DC/24DC/10

• Extended Product Type : Power Supply

• Product ID : QUINT-PS- 24DC/24DC/10

• Phoenix Type Designation : Power Supply

Description

• QUINT DC/DC converter with maximum functionality
  DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.
  QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.

Specification of Phoenix QUINT-PS- 24DC/24DC/10

• Nominal input voltage range : 24 V DC
• Current consumption : 14 A (24 V, I_BOOST)
• Nominal output voltage : 24 V DC ±1 %
• Output current : 10 A
• Dimension(W x H x D) : 40 x 130 x 125 mm.
• Net weight : 0.9 kg
