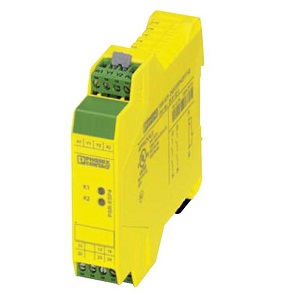

Phoenix Safety Relay PSR-SCP-24DC/ESP4/2X1/1X2

Description

Phoenix Safety Relay PSR-SCP-24DC/ESP4/2X1/1X2

• Extended Product Type : Relay

• Product ID : PSR-SCP-24DC/ESP4/2X1/1X2

• Phoenix Type Designation : Relay

Description

• Up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508
• Single-channel control
• Safe isolation
• With inrush current reduction, therefore suitable for coupling to failsafe controllers (PSR-ESP4)

Specification of Phoenix PSR-SCP-24DC/ESP4/2X1/1X2

• Rated control circuit supply voltage : 24 V DC
• Power consumption : 1.2 W
• Contact type : 2 enabling current paths,  1 signaling current path
• Maximum switching voltage : 250 V AC/DC
• Relay type : Electromechanical relay with forcibly guided contacts in accordance with EN 50205
• Mounting type : DIN rail mounting
