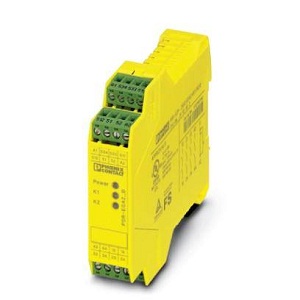

Phoenix Safety Relay PSR-SCP-24UC/ESA2/4X1/1X2/B

Description

Phoenix Safety Relay PSR-SCP-24UC/ESA2/4X1/1X2/B

• Extended Product Type : Relay

• Product ID : PSR-SCP-24UC/ESA2/4X1/1X2/B

• Phoenix Type Designation : Relay

Description

• Up to Cat. 1/PL c according to ISO 13849-1, SILCL 1 according to IEC 62061, SIL 1 according to IEC 61508
• Depending on the application, up to Cat. 4/PL e according to ISO 13849-1, SILCL 3 according to IEC 62061, SIL 3 according to IEC 61508
• Basic insulation
• Single-channel control

Specification of Phoenix PSR-SCP-24UC/ESA2/4X1/1X2/B

• Rated control circuit supply voltage : 24 V AC/DC
• Rated control supply current : 140 mA AC,   65 mA DC
• Contact type : 4 enabling current paths,  1 signaling current path
• Maximum switching voltage : 250 V AC/DC
• Relay type : Electromechanical relay with forcibly guided contacts in accordance with EN 50205
• Mounting type : DIN rail mounting
