Phoenix Socket EM-DUO/120/15/GFI

• Extended Product Type : Other

• Product ID : EM-DUO/120/15/GFI

• Phoenix Type Designation : Other

Description

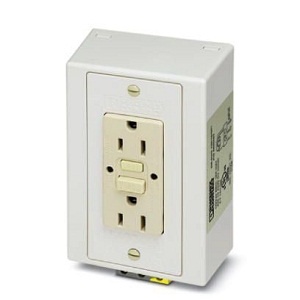

• Rail-mounted dual power outlet with two 120 V AC/15 A receptacles equipped with ground fault circuit interruption (GFCI) for 35 mm DIN rail per EN 60715. GFCI protects against shock hazards associated with ground shorts. For enhanced safety, the grounding pin is located at the top to prevent shorting between the hot and neutral blades. Housing color: ivory. National version: USA. Connection type: screw.

Specification of Phoenix EM-DUO/120/15/GFI

• Width : 82 mm
• Height : 135 mm
• Depth : 49 mm
• Nominal voltage : 125 V AC
• Nominal current : 15 A
• Color : ivory
• Connection method : Screw connection
