Description

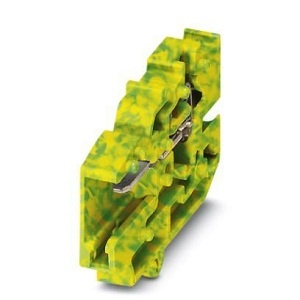

Phoenix Termial Block SC 2,5-RZ/ 1-L GNYE

• Extended Product Type : Other

• Product ID : SC 2,5-RZ/ 1-L GNYE

• Phoenix Type Designation : Other

Description

• COMBI receptacle, nom. voltage: 500 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 1, number of positions: 1, cross section: 0.08 mm² – 4 mm², AWG: 28 – 12, width: 5.2 mm, height: 21.8 mm, color: green-yellow, mounting type: on mounting plate

Specification of Phoenix SC 2,5-RZ/ 1-L GNYE

• Number of positions : 1
• Number of levels : 1
• Number of connections : 1
• Color : green-yellow
• Rated surge voltage : 6 kV
• Maximum load current : 24 A
• Nominal current  : 24 A
• Nominal voltage : 500 V
• Width : 5.2 mm
• Length : 37.2 mm
• Height : 21.8 mm
