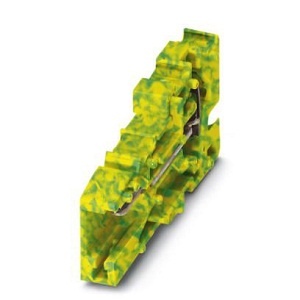

Phoenix Terminal Block SC 4/ 1-L GNYE

Description

Phoenix Termial Block SC 4/ 1-L GNYE

• Extended Product Type : Other

• Product ID : SC 4/ 1-L GNYE

• Phoenix Type Designation : Other

Description

• COMBI receptacle, nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, number of connections: 2, number of positions: 1, cross section: 0.08 mm² – 6 mm², AWG: 28 – 10, width: 6.2 mm, height: 22.3 mm, color: green-yellow

Specification of Phoenix SC 4/ 1-L GNYE

• Number of positions : 1
• Number of levels : 1
• Number of connections : 2
• Nominal cross section :4 mm²
• Color : green-yellow
• Rated surge voltage : 8 kV
• Nominal current  : 32 A
• Nominal voltage : 800 V
• Width : 6.2 mm
• Length : 48.6 mm
• Height : 22.3 mm
