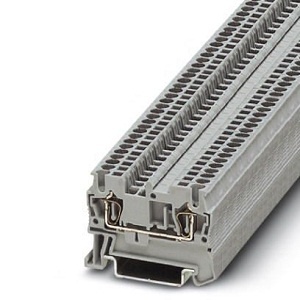

Phoenix Terminal Block ST1.5

Description

Phoenix Termial Block ST1.5

• Extended Product Type : Other

• Product ID : ST1.5

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, number of connections: 2, cross section: 0.08 mm² – 1.5 mm², AWG: 28 – 16, width: 4.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix ST1.5

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 1.5 mm²
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 17.5 A
• Nominal current : 17.5 A
• Nominal voltage  : 500 V
• Width : 4.2 mm
• Length : 48.5 mm
