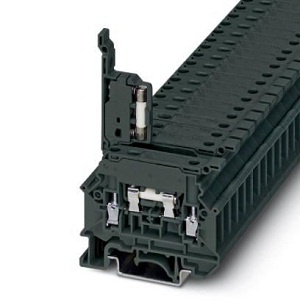

Phoenix Terminal Block TB 4-HESI

Description

Phoenix Termial Block TB 4-HESI

• Extended Product Type : Other

• Product ID : TB 4-HESI

• Phoenix Type Designation : Other

Description

• Fuse modular terminal block, connection method: Screw connection, cross section: 0.5 mm²- 6 mm², AWG: 20 – 10, nominal current: 6.3 A, nom. voltage: 500 V, width: 8.2 mm, fuse type: G / 5 x 20, mounting type: NS 35/7,5, NS 35/15, NS 32, color: dark gray

Specification of Phoenix TB 4-HESI

• Number of levels : 1
• Number of connections : 2
• Fuse : G / 5 x 20
• Color : dark gray
• Rated surge voltage : 6 kV
• Maximum load current : 6.3 A
• Nominal current : 6.3 A
• Nominal voltage  : 500 V
• Width : 8.2 mm
• Length : 58 mm
